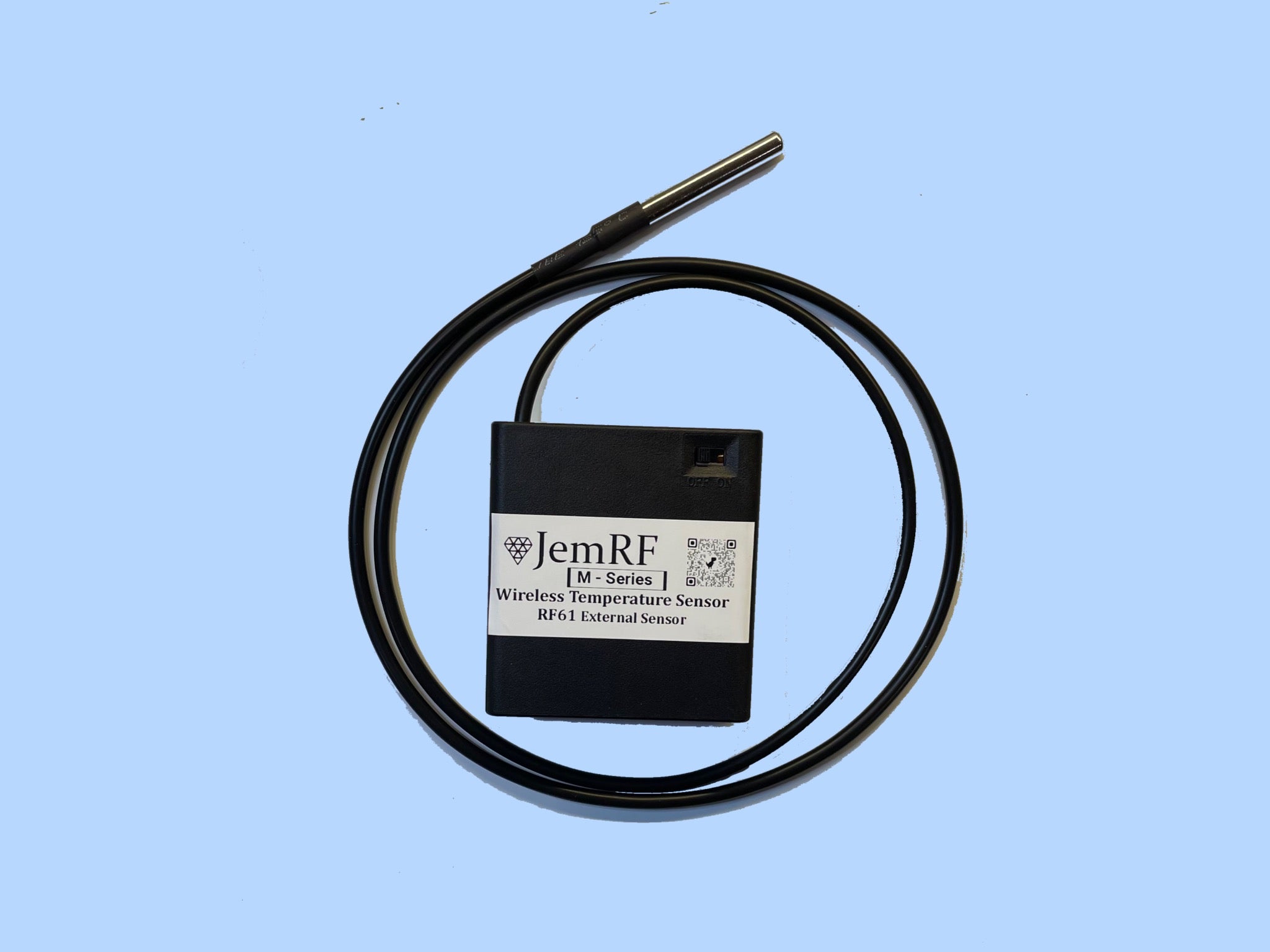

Wireless Temperature Sensor M Series with External Sensor
Wireless Temperature Sensor M Series with External Sensor
Wireless Temperature Sensor M Series with External Sensor

Wireless Temperature Sensor M Series with External Sensor

$26.99 Sale

  • Monitor temperature from your phone or Desktop
  • Create temperature alerts
  • Use temperature to trigger automation
  • Pair of AA Batteries lasts over a year, Batteries Not Included.
  • Powerful transmitter can penetrate walls and floors and up to 1km line of sight
  • Configured to transmit a temperature reading every 5 minutes (configurable).
  • Out-of-box temperature monitoring solutions available
  • Can be interfaced with many IoT systems (e.g. Blynk, Home Assistant, Adafruit IO, ThingsBoard, PrivateEyePi, MQTT, Amazon AWS IOT, Google Cloud IoT).



Tutorials:

Technical Specs:

  • AA Housing with On/Off Switch
  • Temperature Sensor is DS18B20 for high accuracy and repeatability.
  • DS18B20 temperature sensor is used to detect the temperature Measures temperatures from -55°C to +125°C. Fahrenheit equivalent is -67°F to +257°F, ±0.5°C accuracy from -10°C to +85°C
  • DS18B20 is connected to sensor via 1 or 2 meter water proof cable.
  • All devices are based on the high-performance RF transceiver based on the market-leading CC1100 SOC.
  • Wide operating voltage range of 2-3.6V makes the devices suited for battery power.
  • Current consumption: RX: 16.2 mA , TX: 15.2 mA. Deep Sleep : 0.005Ma (0.5 µA).
  • Up to 1KM line of sight. Short range (30M) penetration of walls and floors.
  • 128-bit AES encryption security.
  • Driver-less installation.
  • All the devices are highly configurable through the serial port or over the air using the LLAP messaging protocol specified in the manual.
  • Base station communicates through serial port (TTL UART).
  • Communicates in ASCII clear text making it very easy to exchange data between devices over the air.
  • Supports point to point, point to multi-point, multi-point to point and multi-point to multi-point.
  • Virtually unlimited amount of devices can be deployed. 99,999 Personal Area Network ID’s, 10 channels per frequency and 7,744 Device ID’s per network.
  • Super low power consumption allows devices to be use for long periods of time (up to 1 year depending on transmission rates).
  • Supports 6 frequencies (433 MHZ, 915 MHZ (default US & Canada), 868.3 MHZ (default Europe), 868 MHZ, 903 MHZ, 315 MHZ)
  • 10 channels per frequency.
  • 4 pins for communicating with external micro-controllers like Raspberry Pi and Arduino : Tx, Rx, GND, 3V3.
  • Battery monitor to keep track of power consumption.
