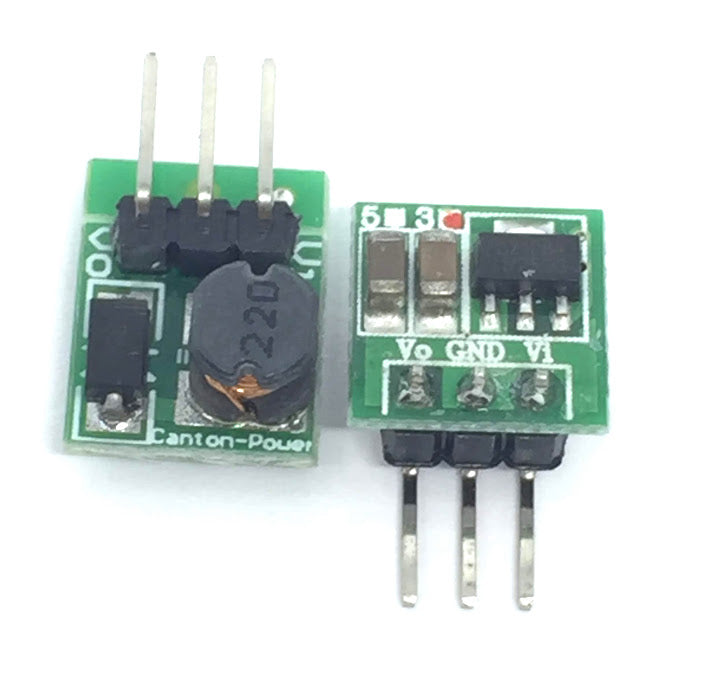

0.9-3.3V to 3.3V Step up Boost Power Module Voltage Converter Mini

0.9-3.3V to 3.3V Step up Boost Power Module Voltage Converter Mini

Regular price $4.99 Sale

Technical specifications:
Size: approx. 1x1x0.7 cm / 0.39x0.39x0.28 ''
Pin Pitch: 2.54mm / 0.1 "
Input voltage: 0.8-3.3 V
Output voltage: 3.3 V
Maximum Exit Current: 500 MA
Voltage Start: 0.8 V, Output Current: 10mA
Input:1-1.5 V; output: 3.3 V, 50-110mA
Input:1.5-2 V; output: 3.3 V, 110-160mA
Input: 2-3 V; output: 3.3 V, 160-400mA
Input greater than 3 V, output 3.3 V 400-500mA
Module Boost dc-dc working frequency 150 kHz, efficiency is normal 85%

This is a DC-DC voltage converter module, it should be noted when using:
Input voltage can not be greater than the maximum input range
Output power can not be greater than the maximum load for a long time
Input power must be greater than output power,
Because the power consumption of the module itself

Package Include :
1x 3.3V Set Up Boost Power Module
