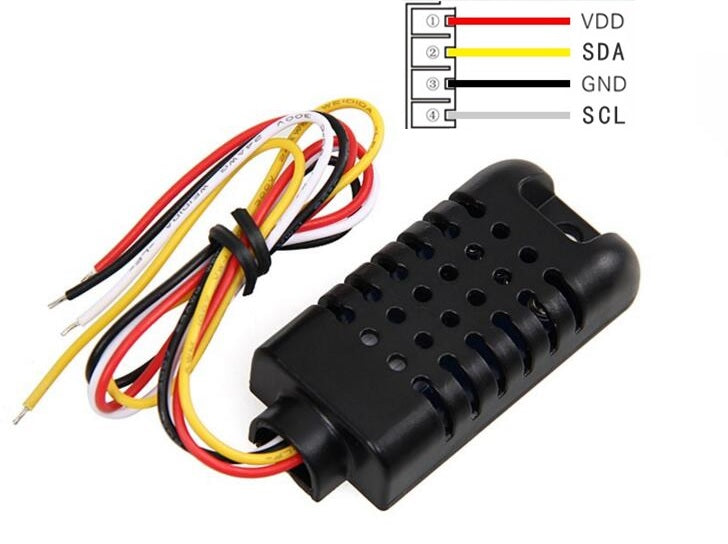

Digital temperature and humidity sensor also named AM2302.
- Can be mounted external to JEMRF WIFI sensor or Raspberry Pi/Arduino etc...
- 9" wires can be extended if required
- 3 to 5V power and I/O
- 2.5mA max current use during conversion (while requesting data)
- Good for 0-100% humidity readings with 2-5% accuracy
- Good for -40 to 80°C temperature readings ±0.5°C accuracy
- No more than 0.5 Hz sampling rate (once every 2 seconds)
- Body size 27mm x 59mm x 13.5mm (1.05" x 2.32" x 0.53")
- 4 pins, 0.1" spacing
Includes:
1 x AM2320B Digital temperature and humidity sensor
1 X 10K resistor
Project/Tutorial:
http://projects.privateeyepi.com/home/home-alarm-system-project/temperature-and-humidity
